Animal Feed Making Plant

Animal Feed Processing Line Machine

Animal Feed : Application
Feed 1.5 mm : grinding tools are used for breeding miniature birds and aquatic animals. Such as: (shrimp, crab, small fish and other aquaculture).
Feed 2.0 mm : grinding tools is used for breeding: parrots, thrushes, birds and other pet birds.
Feed 2.5 mm :grinding tools are used for breeding: young rabbits, young chickens, ducklings, goslings, young birds, young birds, young peacocks, young aquatic fish and other small animals.
Feed 3-4 mm : grinding tools is used for breeding: rabbit, chicken, duck, goose, pigeon, bird, peacock, aquatic fish, etc
Feed 5-6 mm :grinding tools is used for breeding: pigs, cattle, samples, dogs, horses and other livestock

We're here to help: Easy ways to get the answers you need.

SEND EMAIL CHAT NOW

Technical Data
Features
Working principle
Video

We are engaged in feed pellet machinery maker.We mainly engaged in automatic auto-batching feed production line and manual operation feed pellet production line with a capacity from 0.5kg/h to 30 ton per hour or more bigger capacity. and used in poultry cattle farm and producing feed pellets to sell etc.For the feed pellet production line,we can customized all kinds of allocates according to customers’ requirements,such as manual operation,semi-automatic and full automatic,etc.We also engaged in biomass wood pellet production line and feed extrude production line.

Reference Solution for Animal Feed Processing Plant

Main Machine & Capacity	1-2 t/h	3-5 t/h	6-8 t/h	10 t/h	20 t/h
Feed hammer mill	SFSP56 × 30	SFSP56 × 40	SFSP56 × 60	SFSP66 × 80	SFSP112 × 4
Feed pellet machine	SZLH250	SZLH320	SZLH350	SZLH420	SZLH508
Mixer	SLHY1.0	SLHY1.0	SLHY2.0	SLHY2.0	SLHSJ3.0
Cooler	SKLN11 ×11	SKLN15×15	SKLN15 ×15	SKLN19 ×19	SKLN22 ×22
Crumbler	SSLG22 ×40	SSLG15 ×100	SSLG15 ×100	SSLG24 ×110	SSLG24 ×16
Rotary screener	SFJH80×2d	SFJH100×2d	SFJH100×2d	SFJH130×2d	SFJH150×2d
Cooling fan	4-72No4A	4-72No5A	4-72No5A	4-72No8D	4-72No8C
Cooling discharger	XL60	XL80	XL90	XL120	XL150
Boiler	LSG-0.3-0.4	LSG-0.3-0.4	LSG-0.5-0.4	LSG-1.0-0.7	LSG-1.0-0.7
Lifting equipment	TDTG26×18	TDTG26×18	TDTG36×23	TDTG36×28	TDTG50×23
Outline dimension L× W × H	9×3.5×11m	9×3.5×12m	12×4.2×13.5m	13.5×4.8×14m	15×5.5×17m

Animal Feed Processing Plant

Animal Feed Pelleting Machine

Animal Feed Pelleting Machine Parameters:

No	Item	Pellet Mill Specification
		SZLH32	SZLH35	SZLH40	SZLH42	SZLH508	SZLH558	SZLH678	SZLH768
1	Capacity	2-5T/H	2-8T/H	2-10T/H	3-12T/H	4-20T/H	6-22T/H	10-30T/H	12-35T/H
2	Main power	37kw	55kw	75/90kw	110kw	132/160kw	160/180/200kw	220/250kw	280/315kw
3	Power of feeder	0.55kw	1.5kw	1.5kw	1.5kw	1.5kw	2.2kw	2.2kw	2.2kw
4	Power of conditioner	2.2kw	3kw	3kw	5.5kw	7.5kw	7.5kw	11kw	15kw
5	Inner diameter of die	320mm	350mm	400mm	420mm	508mm	558mm	678mm	768mm
6	Die speed	305RPM	336RPM	307RPM	287RPM	287RPM	287RPM	287RPM	287RPM
7	Feeder speed	12-120RPM
8	Conditioner speed	350RPM
9	Pellets size	Diameter 2,3,4,4.5,5,6,8,10mm
10	Rollers number	2 pcs
11	Roller OD	140mm	165mm	190mm	206mm	222mm	240mm	256mm	280mm
12	Pellets rate of briquette	≥95%
13	Percentage of powdered pellets	≤12%
14	Stability of pellets in the water	≥20 MIN
15	Noise	≤86dB（A）		≤90dB（A）
16	Die working temperature	≤85℃
17	Steam working pressure	0.1-0.4Mpa
18	Steam consumption	≥0.3t/h	≥0.3t/h	≥0.4t/h	≥0.5t/h	≥1t/h	≥1t/h	≥1.5t/h	≥1.5t/h
19	Steam temperature	130-150℃

What we offer:

The planning and design for whole factory or complete set production line

1. Poultry & livestock feed mill project:

· Feeds for animals in various growing period;

· Different capacity, 0.5~40TPH per line;

· Meeting the standards of different countries and regions.

2. Aqua feed mill projects:

· Sinking fish feed, shrimp feed etc.

· Different capacity, 0.3-15 TPH per line;

· Meeting the standards of different countries and regions.

3. Premix plant project:

· Specialized equipment and process flow;

· Effectively controlled cross contamination, residue and dust emission;

· Different capacity, 0.3-15 TPH per line.

4. Pet-food plant project:

· Specialized extruder, dryer and coater adopted;

· Different capacity, 0.3-10 TPH per line.

Animal Feed Pellets Mill Products Instruction:

Extra-fine
1.5 mm grinding tools are used for breeding miniature birds and aquatic animals. Such as: (shrimp, crab, small fish and other aquaculture).
2.0 mm grinding tools is used for breeding: parrots, thrushes, birds and other pet birds.
2.5 mm grinding tools are used for breeding: young rabbits, young chickens, ducklings, goslings, young birds, young birds, young peacocks, young aquatic fish and other small animals.
3-4 mm grinding tools is used for breeding: rabbit, chicken, duck, goose, pigeon, bird, peacock, aquatic fish, etc
5-6 mm grinding tools is used for breeding: pigs, cattle, samples, dogs, horses and other livestock
.

If you're interested in our feed pellet machines, please kindly tell us the following requirement:

1. What's the feed pellet production capacity do you want?

R:we can supply feed pellet mill or production line with output from 0.1-30t/h.

2. What's your feed raw material and size and feed formula content?

R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.

3. What's the final feed pellet diameter or size do you want or for what animal?

R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep？fish?horse? cow? or pig?or what purpose?

Animal Feed Pellet Production Line

We Sinoder Group are dedicated to providing complete engineering or turnkey solutions to the process industries like livestock, Animal and Poultry Feed Plant Manufacturers, Pharmaceutical Industries, Bio-mass Pellet Plants, Organic Fertilizer Plants, Food Industries, Shell Grit Plants, Fish Meal Plants, Paint Industries etc.
We Manufacture / Design / Install Plants in Various Capacities, Different Layouts either customized or with our standards, for all trades which are as stated above.

Animal Feed Pellets Processing Line Technology

Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

Equipment Related to Complete Feed Pellet Production Line

Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine

Continuous and reasonable process flow in our Pellet Feed Production Line:
l Raw material storage system of poultry feed plant: Silo
l Pre-cleaning system of poultry feed plant: Pre-cleaner
l Crushing system of poultry feed plant: Hammer mill
l Proportioning system of poultry feed plant: Batch weighed, Rotary distributor, Batch bins
l Mixing system of poultry feed plant: Mixer
l Pelletizing system of poultry feed plant: Pellet mill
l Cooling system of poultry feed plant: Cooler, cyclone
l Sieving system of poultry feed plant: Grade sifter
l Packing system of poultry feed plant: Packing scale

Hammer Grinder

Animal Feed Hammer Mill Parameters

Model	SFSP60×38	SFSP60×45	SFSP60×60	SFSP60×75	SFSP60×80
Power（kw）	30/37	45/55	55/75	75/90	90/110
Output	1-2（Fine）	1.5-3（Fine）	2-4（Fine）	2.5-5（Fine）	3-6（Fine）
Output	4-7（Coarse）	6-9（Fine）	8-12（Coarse）	10-15（Coarse）	12-18（Coarse）

The hammer grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.

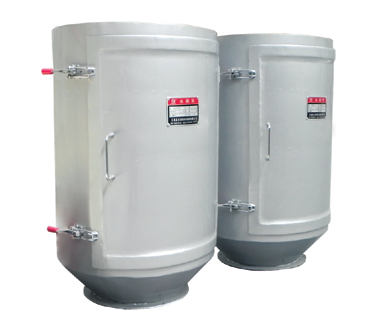

Magnetic Separator
TCXT series of permanent tube, mainly used for the separation of magnetic material metallic inclusions, suitable for all sizes of feed mills, grain and oil processing plants, solvent plants and breweries

Feed Material Mixing Process: single or double shaft mixer

Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.

Feed Pelletizing Process: Pellet Mill

Animal Feed Mill Machine Parameters

Model	Production capacity	Main engine power	Conditioner power	Conditioner diameter	Conditioner length	Feeder power	Inner diameters of ring die	Particle specifications
Model	(t/h)	(kw)	(kw)	(mm)	(m)	(kw)	(mm)	(mm)
SZLH350	2-5	55	4	350	3	1.1	φ350	φ2-18
SZLH400	3-12	75/90	5.5	400		1.5	φ400	φ2-18
SZLH420	3-14	90/110	7.5	400		1.5	φ420	φ2-18
SZLH508	6-20	132/160	11	460		1.5/2.2	φ508	φ2-18
SZLH558	8-25	160/220	18.5	630		1.5/2.2	φ558	φ2-18

Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc.

Feed Pellet Cooling Process: Counterflow cooler

The feed pellets pressed out by the feed pellet mill are hot and moist. They can’t be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.

Feed Pellet Screening and Grading Process: sieve machine

The crushed feed pellets are with different sizes, and there may be some powder. The rotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.

Feed Pellet Packing Process: Automatic Packaging machine

The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.

Rotary Distributor

Rotary Distributor Pulse Dust Filter Bucket Elevator

Supply Complete Machine and Service: Animal Feed Plants, Poultry Feed Plants, Poultry Feed Mash Plants, Poultry Feed Pellet Plants, Cattle Feed Plants, Bio-mass Pellet Plants, Fish Meal Plants, Chick Brooders, Mixers And Blenders, Conical Mixers, Double Shaft Mixers, Ribbon Blenders, Material Handling Systems, Screw Conveyors, Belt Conveyors, Bucket Elevators, Pellet Rolling Mills, Crumbling Mills, Pellet Mills, Crumbler, Pellet Coolers, Hammer Mill, Half Sieve Hammer Mill, Full Sieve Hammer Mill, Chain Conveyor Spares, Chain Spares, Conveyor Spares, Buckets Of Conveyors, Bucket Elevator Spares, Stacker Spares, Belt Conveyor Spares, Spares Of Belt Conveyors, Slat Conveyor Spares, En Mass Conveyor Spares, En Masse Conveyor Spares, Manufacturer, Exporter, Supplier, Design, Installation

Advanced Animal Feed Pellet Making Plant Control System

Animal Feed Pellet Production Line Plant (Small Scale Animal Feed Plant)

No.	Name		Type	Qty.	Power（kw）			Performance&characteristics
					unit	total
Materials receiving and handling system
101	raw material hopper & screen			2				made by 3mm steel plate. 8008001000mm
102	Screw loader		TLSS16	1	3	3		Special design, used for crushing and discharging materials.
103	Screw loader		TLSS16	1	3	3		Special design, used for crushing and discharging materials.
104	vertical crusher		SFPZ56*20	1	15	15		Built rotor, secondary crushing design, full operation door, elasticity chain pressure screening mechanism, adjustable hammer screen space, a machine can realize coarse and fine two kinds of pieces. Planing base. After high-precision rotor balancing efficacy, Japan NSK Bearings, free replacement within two years
105	single shaft mixer		SHW1.0	1	11	11		Three rows of chain drive, high strength, low noise, extremely smooth operation. Open angle reaches 90 ° The coefficient of variation <5
106	Manual sluice valve			1		0
107	Bucket elevator		TDTG26/18	1	4	4		Anti-reverse, high-strength plastic bucket.Stand at the bottom of the stainless steel arc, resistance, abrasion resistance, less residual material. Bottom pulley for grid mesh, non-stick material. Barrel is made by 2mm plate. Jiangsu Kunishige Cathay cycloid reducer.
108	Magnetic separator		TXTL20	1				Iron removal efficiency ≥99.5%.
Pelleting & Cooling System
201	Storage bin for crushing		2M3	1				Made by 3mm steel plate.
202	Pellet mill		SZLH30	1		39.95		37+2.2+0.75kw
	Ring die			2				With famous ring mold, stainless steel conditioner, smooth operation, widely used in aquaculture feed and poultry feed.
	Press roller assembly			2
	Press roller shell			6
203	Adjusting air valve			1
204	Induced fan		4-72No2.2A	1	3	3		After balancing check; Smooth, low noise operation.
205	cyclone dust catcher		XL40	1		0
206	air lock valve		GFY250	1	0.75	0.75
207	Counter-current cooler		SKLN11×11	1	0.75	0.75		Countercurrent cooling, the particles were cooled evenly, not burst, cooling time and filling volume adjustable, nesting smooth no residue.
208	Grinder		SSLG15X80	1	4	4
209	Induced fan		4-72No4A	1	5.5	5.5		After balancing check;Smooth, low noise operation.
210	cyclone dust catcher		XL60	1		0
211	air lock valve		GFY250	1	0.75	0.75
212	classifying screen		SFJ60	1		0
213	Filter bag			1		0
Automatic Packaging System
301		Bucket elevator	TDTG26/18	1	4		4		Bucket elevator
302		Finished Silo	2M³	1					Finished Silo, Made by 3mm steel plate.
303		Open Packaging machine	DGF-50K	1	1.5		1.5		Open Packaging machine
304		Automatic sealing machine		1	0.75		0.75
305		Air compressor		1	5.5		5.5
Note			The above listed machines is just for reference
