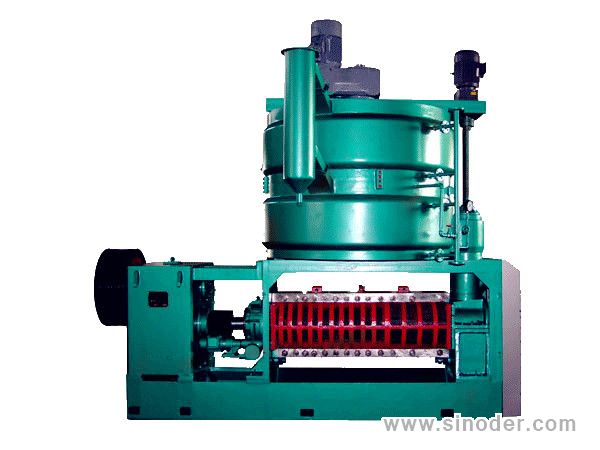

ZX-18 (200A-3) Oil Expeller
Traditional Oil Mill machine is applicable for the pressing of vegetable oil-bearing crops such as rapeseed, peanut kernel, sesame, cottonseed kernel, soybean, copra, teaseed, sunflowerseed, etc. In accordance of the request of customer, the pressing worms can be replaced for the pressing of rice bran.
Features
1. The main parts main shaft, pressing worms, cage bars, gears, etc are made of high-quality alloy, and be surface hardened.
2. The meal is cooked and steamed in the cooker, according to different temperature requirement of different kind of seed, the temperature and water content can be regulated accordingly, so high quality oil can get.
3. From feeding to the outflowing of oil and cake, the machine is thorough automatic working, the maintenance is easy, and labor hand is saved.
Technology Data
Capacity: (handling amount of seed)
| Seed |
Capacity(kg/24h ) |
Oil yield（% ) |
Dry cake residual oil rate（% ) |
| Rapeseed |
9000～10000 |
33～38 |
6～7 |
| Peanut kernel |
9000～10000 |
38～45 |
5～6 |
| Sesame |
6500～7500 |
42～47 |
7～7.5 |
| Cottonseed kernel |
9000～10000 |
30～33 |
5～6 |
| Soybean |
8000～9000 |
11～14 |
5～6 |
| Sunflower seed kernel |
7000～8000 |
22～25 |
8～9.5 |
| Rice bran |
5500～6500 |
10～14 |
7～8 |
1、Auxiliary Cooker Diameter ： φ1220 mm
2、Rotating speed of mixer shaft： 35 rpm
3、RPM of main shaft ： 8 rpm
4、RPM of feeding shaft ： 69 rpm
5、Steam pressure： 5～6 kg/cm2
6、Motor power： 18.5 kw
----------------------------------------------------------
Note：
（1) The actual capacity may be more or less according to meal preparation condition and the kind of seed.
（2) For the pressing of rice bran, special pressing worms should be adopted.
Traditional Oil Mill 203
Technology Data
1. Capacity: above 45-50T/D(take sunflowerseed or rapeseed pressing as example)
2. Residual oil content in cake: 13%( under appropriate preparation)
3. Motor power: 30Kw
4. Net weight: approx 5500KG
Traditional Oil Mill 204
Technology Data
1. Capacity: above 75-80T/D(take sunflowerseed or rapeseed pressing as example)
2. Residual oil content in cake: 15-18%( under appropriate preparation)
3. Motor power: main shaft: 30Kw
4. Net weight: approx 5800KG
FAQ
Our
Sinoder Indutech Machinery Company supply the complete set of Cooking oil production line machinery including sunflower oil production line, palm oil production line, soya bean oil production line, peanut oil production line, cotton seeds oil production line, maize corn germ oil production line, clamelia oil production line, rapeseeds oil production line, canola oil production line, coconut cropra oil production line, shea oil production line, groundnuts oil line, sesame oil production line,black seeds oil production line, jatropha seeds oil production line,moringa seeds oil production line and other vegetables oil processing machines.
Q1 : Which kind of materials can be processed?
All kinds of oil seeds. For example, sunflower seeds, rice bran, corn germ, palm fruit, palm kernel,coconut,peanut, soybean, sesame, cottonseeds, rapeseed, etc.
Q2 : What's the capacity?
Generally, 10-5000 tons per day. We can also manufacture as per customers' requirements.
Q3 : How long is the warranty?
The main parts of the machine come with one year warranty and after the expiration our engineer is available overseas to do the maintenance work.
Q4 : Can the machine be installed locally?
We can do the turn-key projects or other services according to customers'requirements,according to this condition,our services can be manufacturing,purchasing,transporting,installation,training labors etc.
Q5 : How to operate the machine?
Our engineers will be available to guide and train your labors how to operate and run the machine.
If you want to know more the vegetable oil processing machines and cooking oil refinery plants, pls feel free to visit our special webstie: http://www.oilgrainmachine.com and send us the detail requirements by email.
