A complete egg tray machine line consists of Stock Preparation System Section, Egg Tray Molding Machine Section, Continuous Egg Tray Drying Oven and Egg Tray Conveyor System, Egg Tray Process Instrumentation, Instrument and Control Panels, Jobsite Installation Materials, Egg Tray Machine Auxiliary Equipment, etc.
Main Equipments in Egg Tray Making Line Plant:
A.Pulping system:Hydrpulper, Pulp pump, Sewage pump, Air compressor, Agitator;
B.Forming system:Forming machine, Mould, Vacuum pump, High pressure washer, Baler;
C.Drying system:Cart-like brick kiln drying,traditional conveyor belt or metal multi-layer

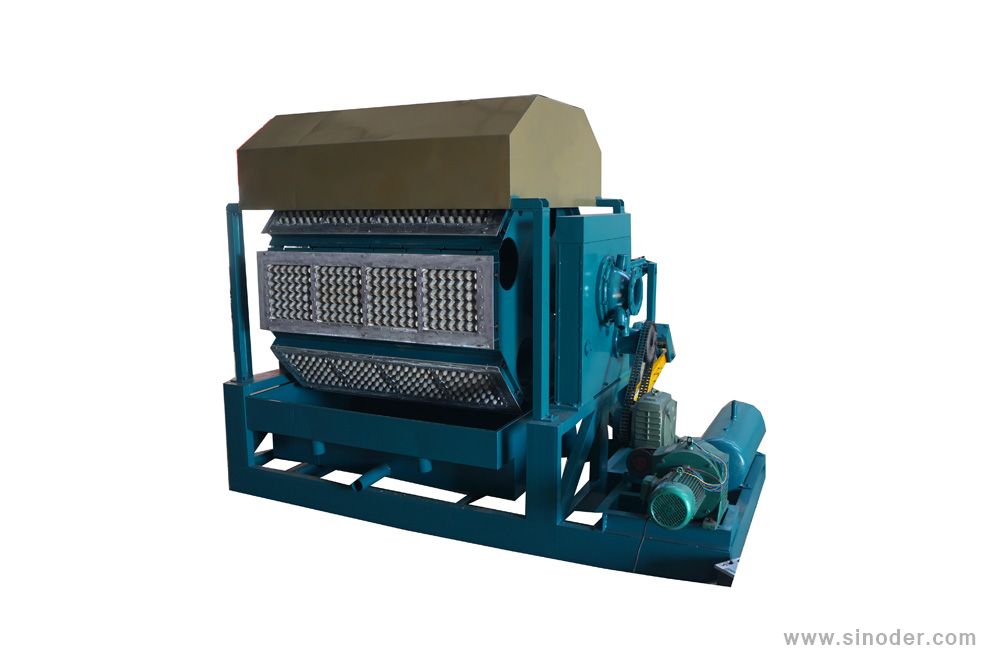

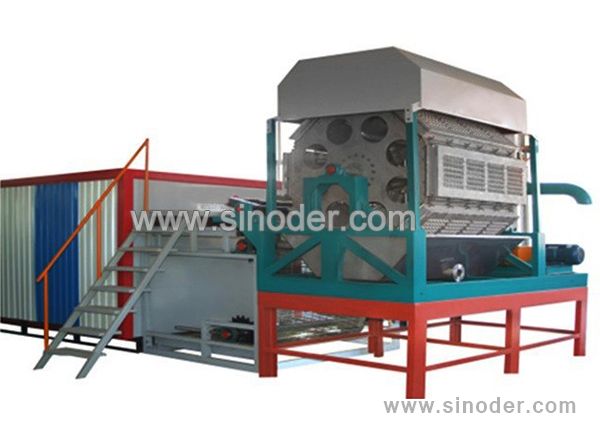

Egg Tray Rotary Moulding Machine Parameters:
| HL-1000A |
800-1000PCS/h |
Semi-automatic |
28kw |
Natural drying |
| HL-1500A |
1500PCS/h |
Automatic |
34kw |
Natural drying |
| HL-2000B |
2000PCS/h |
Semi-automatic/automatic
Can be choosed |
49kw |
Automatic belt drying or
Build kiln drying |
| HL-2000A |
2000PCS/h |
4*3 full Automatic |
41.5kw |
Build kiln drying |
| HL-2500A |
2500PCS/h |
4*4 full automatic |
60kw |
Automatic belt drying |
| HL-3000A |
3000PCS/h |
4*8 full automatic |
116kw |
Automatic belt drying |
| HL-4500A |
4500PCS/h |
5*8 full automatic |
130kw |
Automatic belt drying |

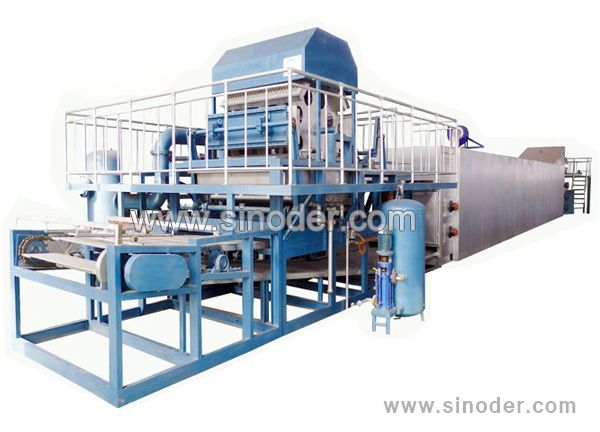

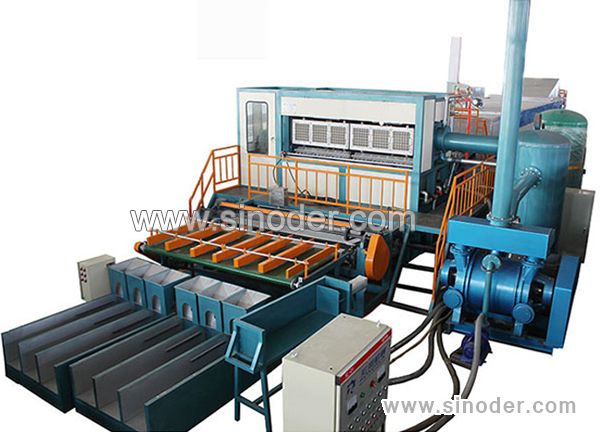

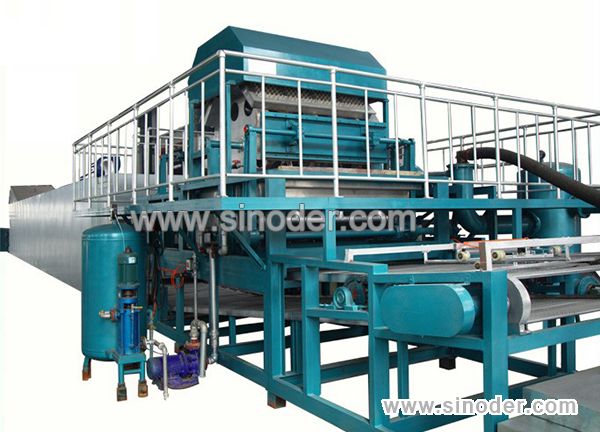

Egg Tray Production Line:
Egg Tray Pulping Process

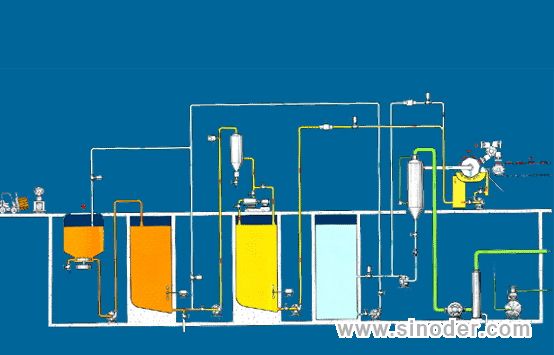

In the normal egg tray pulp molding process, the stock preparation system is very similar to a small paper mill. There is a hydraulic pulper that beats the waste paper to a uniform consistency with water to yield a 4% (solids) consistency pulp stock. To this mixture is added rosin sizing that usually forms about 1% of the solids content of the final pulp stock. This pulp is pumped into a storage chest. It is then pumped through a vibration screen, and a refiner to eliminate fibre bundles or lumps of unpulped paper and then it is dumped into a refined stock chest. The pulp slurry is pumped to the machine on demand from the machine control panel. White water is also added to the stock and is automatically metered with a concentration adjustment system.
1. Turn on auto water feeding switch. Adding 50%-70% water inside drum of hydraulic pulper. Adding weighted waster paper inside the hydraulic pulper.
2. After auto time-controlling. The ready pulp is pumped into vibration screen machine. Which will be diluted by adding water. Impurities will be separated automatically.
3. After processing. The ready pulp will flow into #3 pulp pool. Which will be pumped into pulp milling machine. Where the pulp will be refined again. After separating and diluting, the pulp will be adjusted by automatic pulp concentration unit. The ready pulp will be pumped into #1 or #3 pulp pool.
4. Chemical additives will be added by auto chemical adding unit. It ' s gauging pump.

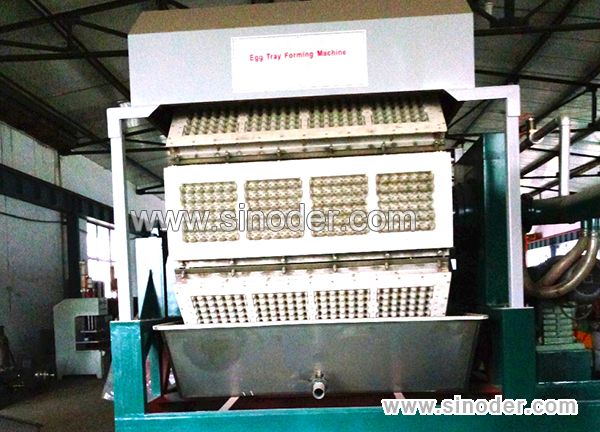

Egg Tray Molding Process
5. Star molding machine. Turn on automatic exchanging controller. Pump ready pulp from #1 or #2 pulp pool into molding machine. The extra pulp will flow feedback into #3 pulp pool automatically.
6. The water separated by vacuum pump will be feeded into air water separator by high pressure pump. After processing the water will flow into water pool for recycle usage.
7. The molding machine is equipped with a auto cleaning unit which is used in cleaning mould continuously during production. One pressure water pump will be used in feeding clean water for the auto cleaning unit.

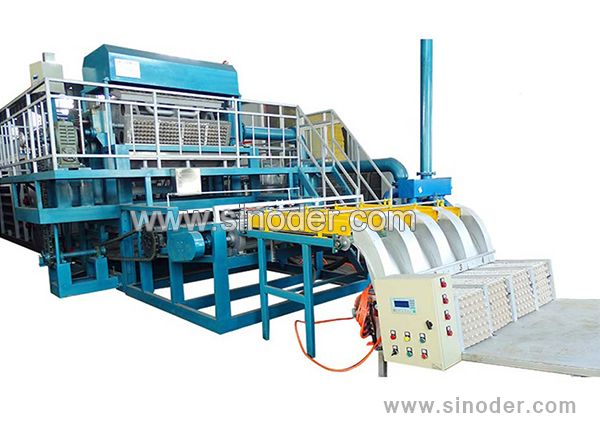

Egg Tray Drying & Conveying
8. Egg trays will be put on the feeder of drying tunnel by egg tray transferring unit.
The egg tray drying section consists of a direct-fired natural gas (or oil) re-circulating air dryer with a pass conveyor carrying the wet products through the heated dryer tunnel. An endless chain conveyor system conveys them through in the dryer tunnel while re-circulated hot air is blown from the top through the layers. The dried egg tray are then discharged to an unloading conveyor where they are automatically stacked, counted.
Egg Tray Reshaping and Parking
9. The dry egg tray will be collected and packed by auto counting and packing unit in the receiving part of the drying tunnel. The egg box with cover will be reshaped by reshaping machine before packing.
10. Finished products in warehouse.

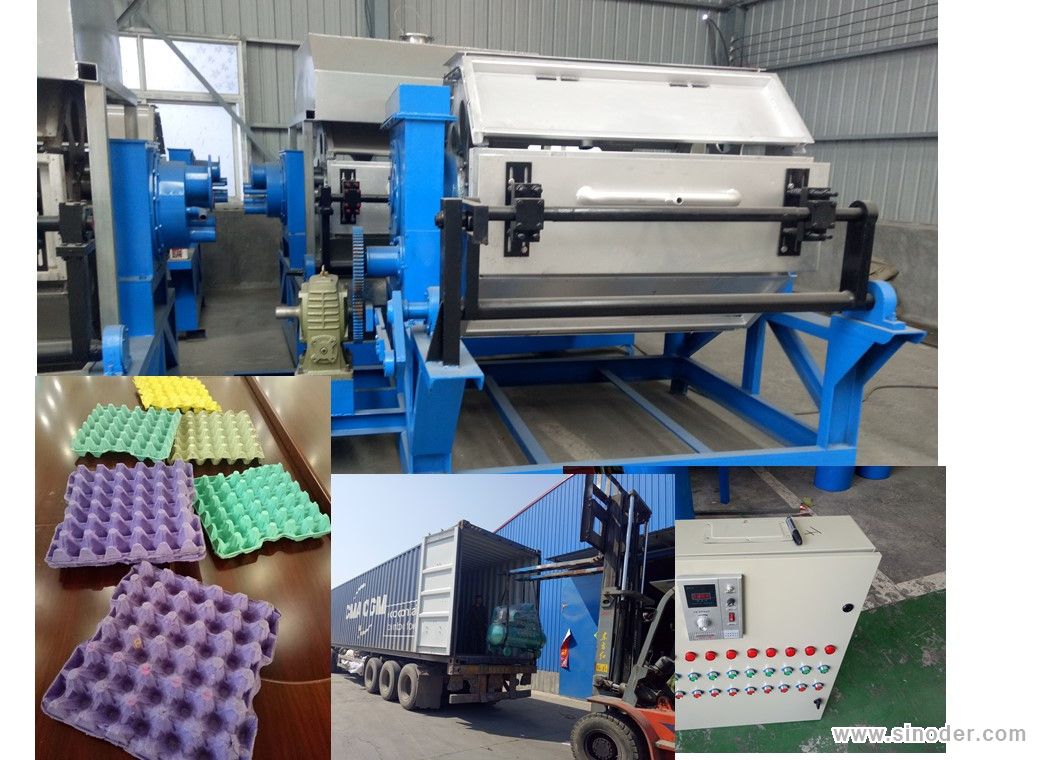

After saling egg tray machine, if necessary, We will send one or two engineers to set up and commission the egg tray machine until it runs in normal state. Druing the time your workers who will operate the egg tray machine will be trained.
FAQ
Q :What's the raw material of Egg tray molding equipment ?
A :Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
Q :What type of the pulp product can be produced?

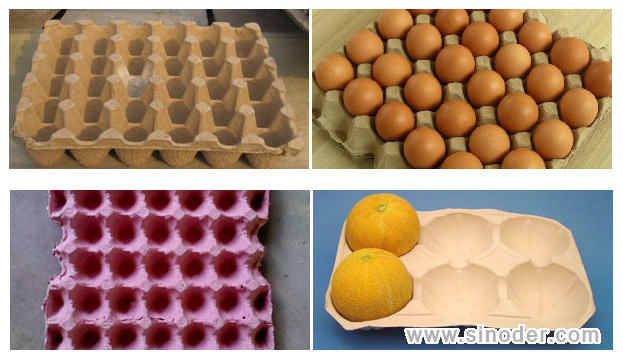

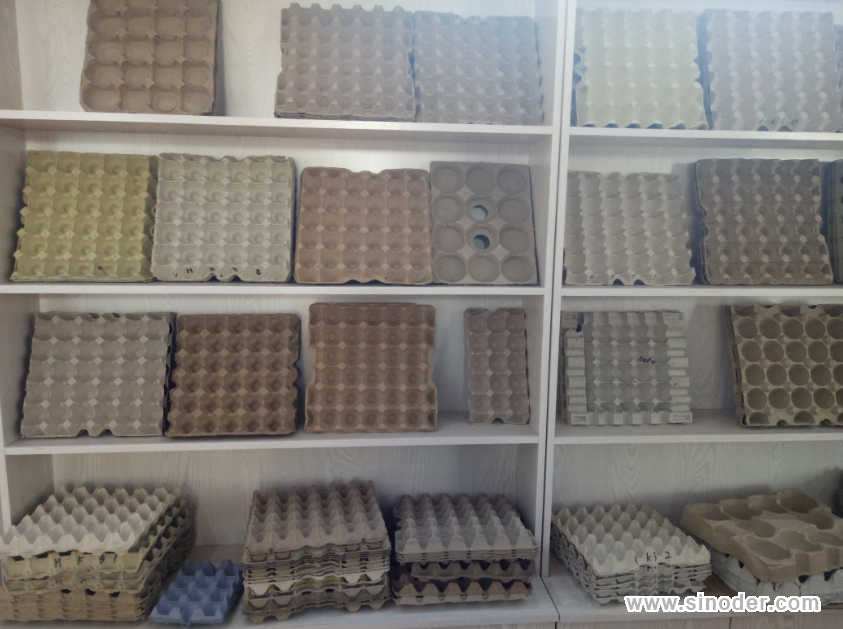

A:By changing relevant molds, our pulp molding machinery can make many kinds of pulp trays,such as egg trays, egg cartons, bottle trays,electric spare part trays, fruit trays,etc.
Q:What kind of Fuel can be used for the whole production line?
A:Gernerally is coal,natural gas,dieseal oil can be selectable.
Q :What we should do get a better quotation ?
A :When your sent your inquiry , please tell us tray shapes and production capacity you want .Very thanks!
Q:Will you send engineers to design our plant and install the equipment?
A:Yes, Our factory will arrange engineer to supply the professional drawing and install and train the
Worker aboutadjusting the equipemnt ,disposing of the trouble maybe happen and maintenance of themachine,after training ,the workers will get work license we distribute.
Egg tray machine equipment mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys and so on. The paper carton can replace the plastic bag and corrugated paper. And they not only have the protection, cushion performance, make less damage, improve the package figure, but also can saving cost, protect environment and can be recycled use. They are the typical product in the green package storm.
Raw Material:
Pulp Board
Different pulp made by bulrush, straw, bagasse, bamboo, wood etc.
Waste Paper
Such as paper board, carton, newspaper, waste pulp in paper making factory.
Plant Fibre
Fibre of palm, straw, sugarcane etc.
Pulping system: Our unique automatic control system, automatic feeding, automatic mashing, automatic water, save electricity by 40%, improve the efficiency of 100%
Put the waste paper to pulper to make pulp, after some support equipments and 3 pulp pools, the pulp concentration will become 0.8%-1%.

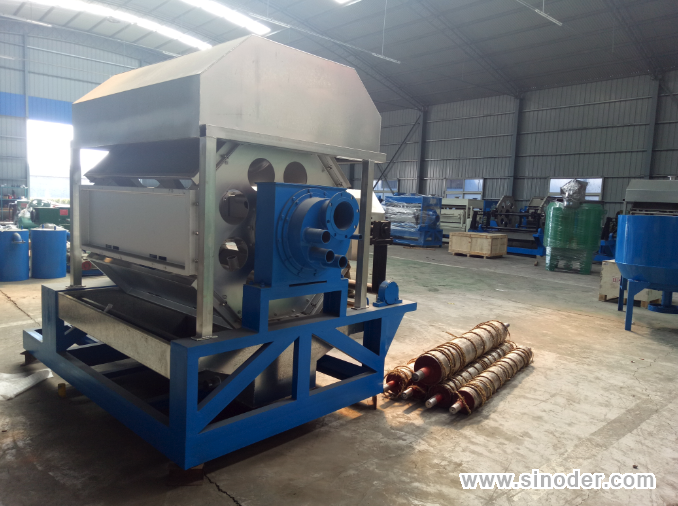

Forming Systems: My company's unique multi-functional machine that can simultaneously produce crude egg trays, egg cartons, fruit tray, coffee tray and industrial packaging, it can produce a variety of products, maximum hourly output 1000, with automatic vacuum dehydration system, automatic cleaning mold system with automatic control cabinet.
Drying system: single- and multi-drying lines, the user can choose the imported burner, available LPG.GAS diesel, and either a source of energy for fuel, equipped with automatic control cabinet,
