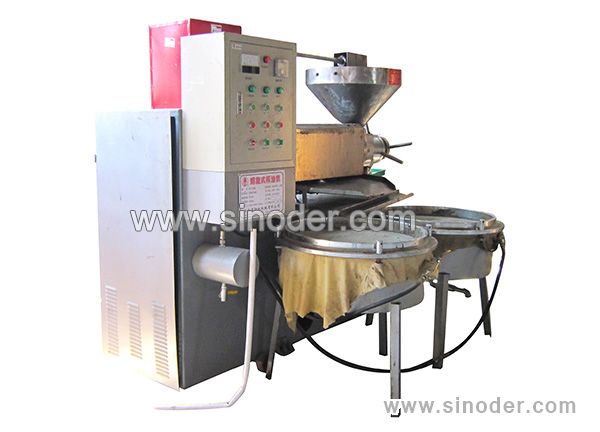

Edible oil press machine, which is also called oil expeller, oil extraction machine or oil mill, It can be used for various raw materials, such as soybeans, peanuts, cotton seeds, rape seeds, sesame seeds, sunflower seeds, canola seeds, coconut seeds, tea seeds, palm seeds and jatropha seeds.
Technical datas Of the oil press machine
Model
6YL-80
6YL-100
6YL-120
6YL-160
Dia.
φ 81mm
φ 101mm
φ 123mm
φ 160mm
Screw speed
47r/min
38r/min
35r/min
32r/min
Power
Motor
5.5kw
7.5kw
11kw
22kw
Vacuum pump
0.55kw
0.75kw
1.1kw
1.1kw
Heater
2.2kw
2.2kw
2.2kw
2.2kw
Capacity
80-100kg/h
150-200kg/h
250-300kg/h
500-600kg/h
Weight
880kg
1250kg
1500kg
1800kg
Size (mm)
1500×1200×1750
2000×1300×1850
2100×1300×1850
2300×1300×1950
Model
6YL-60
Screw shaft diameter
φ 53mm
Screw speed
64r/min
Power
Motor
1.5-2.2kw
Vacuum pump
0.18kw(VP—1.5)
Heater
0.9kw
Capacity
40-60kg/h
Weight
268kg
Size (mm)
1020×720×798
Oil Rate
Item
Weight(kg)
Oil Rate(%)
Oil
Cake
(kg)
(kg)
Peanut
200
48%
96
102
Soybean
200
15%
30
168
Rapeseed
200
38%
76
122
Sunflower seed
200
41%
76
122
Sesame
200
50%
96
102
How to Choose Oil Press
1. How to Choose & Purchase Various Oil Presses：
When purchasing an oil press, first to see the appearance whether welding point is uniform , to check the machine whether lack spare parts, and then to turn the big belt pulley by hand to run several circles in order to check whether there is iron etc. foreign material in press barrel, whether blocked there, at the same time to well note whether gears mesh normally in gear box.
2. Raw Material for Oil Presses:
Now the oil press can be used for general processing of soybean, jatropha,peanut, sesame, rapeseed, canola, sunflower seeds, olives and other particles and also can be used for rice bran, corn germ powder, such as oil and safflower oil, and other few wild plants of oil- bearing materials.
How to Use Oil Press
When refers to the topic how to use oil press, we should always read the following words.
Before using the oil presses, first of all should be ready for all of assistant devices and containers, check and adjust the degree of tightness of belts. And then start up the motor so that the machine run empty of material around 15 min, checking the rotate speed of screw pressing worm. The general speed should be around 33 minutes.
When empty running, attention should be paid to the meshing condition of gears in gear box and if the voice is normal, if all parts of the bearing and motor run normally. When empty running, the current of motor should be about 3A. If electric current is too high, should stop running the machine immediately to check. Restart the machine after adjustment.
When empty running is ok, prepare about 50 kg rapeseed or soybean, ready to put into the feed hopper. Well note that at the beginning of pressing, the feeding of material can not be too fast. Otherwise when the pressure increase suddenly in press barrel, the screw press worm can not run, resulting the block in press barrel, even broken caused serious accident.
Thus begin pressing, the feed of material shoulbe be slowly into the hopper so that the oil press run in. So repeated, last more than 3 ~ 4 hours, the temperature gradually increased ready to press, or even smoke (this is a normal phenomenon).
At the beginning of pressing, the temperature is lower in press barrel, can move the handle slowly on the worm shaft, to increase the thickness of the meal. While increasing the moisture of material, waiting for the suitable barrel temperature. Rising to 90 ℃, when oil press running normally, change the thickness of cake into 1.5 ~ 2.5 mm, and fastening the fixed nut.
After the normal operation of oil presses, for raw material with high oil content, the extraction of oil is mostly concentrated in the rods and forward round rings. The extraction of oil is about 60% in rods, 30% in forward round rings of total oil output. The end extraction is few in drops with light clean color.
After 2 or 3 times of repeated pressing, the extraction of oil can be out for rapeseed and soybeans. During this period, the oil residue contented high oil can be mixed with material into feeding. The feeding of material need keep evenly, avoid of more or less for a while. Otherwise the life of oil press and oil extraction rate will be affected.
When oil press running, should check the output condition of meal regularly. And control the moisture of material neither too high or too low. Normal meal should be flake with smooth on one side close to pressing screw worm and rough veins on the other side. If the meal is too loose, out of shape, dark color and easy broken by hand, that is too little water added into material caused. If the meal is soft, big flake, and too much foam in extracted oil, that is too much water caused. Under normal conditions, there is no or little residue out from round rings.
The residue is out from rods. If the residue is like thin flakes, it means moisture is too high. If the residue is like powder, it means moisture is too low. Moreover, the position of oil extraction can show if the moisture of material suitable for pressing. The moisture of material for pressing too high or low, the position of oil extraciton will move backward.
How to Store Oil
All of the oil remains liquid when kept at room temperature so it is best to store oil in a cool, dark and dry place, such as your pantry. While different oils have different store methods.
Oils that are high with monounsaturated fat will keep up to a year, while refined olive oil, which has the highest of monounsaturated fat, can last a few years. Extra virgin and virgin olive oils will keep about a year after opened. The shelf life of most other oils after opened is usually six-eight months.
Do not store oil in that pretty jar in the kitchen window or keep it on the shelf next to the stove. One important reason to store oil is keep it from oxygen. The only measure you can take is storing oil in jars and then using a food saver device to extract oxygen from the jar. Even that isn't fool-proof.
Oil Seed Roaster
Oil Seed Roaster is best use for oil press.
Type
100
200
300
500
capacity
100kg/hour
200kg/hour
300kg/hour
500kg/hour
Power
0.75kw
0.75kw
1.1kw
3kw
Size(mm)
1550*700*1050
1800*850*1200
2050*950*1400
2400*1100*1700
Weight
100kg
165kg
221kg
350kg
before operate the oil press machine, Oil Seed Roaster fry raw material, which can make the raw material moisture reach about 6% and temperature reach about 100℃. Then operate the oil press machine to extract oil. This can increase the high capacity.
Oil Seed Roaster can fry sesame,soybean,sunflower seed,etc.
Oil Seed Roaster can use coal fuel,carbon fuel,gas and electric power. You can choose one suit for you and save your cost.
Advantages of the Oilseed Roasting Machine
Wide application for various oil bearing materials.
Simple and resonable structure : It changes the single outlet into double outlet, increase the input diameter and achieve the fast input and fast output.
Time and labour saving, easy operation and high efficiency: The roaster is closed that can control the heat to go out and achieve the steaming and roasting function, speed up the roasting seeds.
Continuous turning working: Materials roasted turned constantly, make its surface uniformly touch with pan area and avoid that flat pan roasting seeds not uniform and flammable and scorched, so it develops the oil output and oil quality.
Attention When Operating
Check the machine is safe or not before running the machine.
Start the machine for five to ten minutes to see if there is abnormal phenomena. If the machine is normal, you can start roasting your oil bearing materials.
In the roasting process, other people can't approach the machine except the operator. Don't touch the roasting machine body or the driving device when it runs.
The roasting time is determined by the raw materials, usually 15 to 30 minutes.
After finishing roasting the raw materials, you can start the inversion switch; After all the raw materials delivering out, turn off the power.
