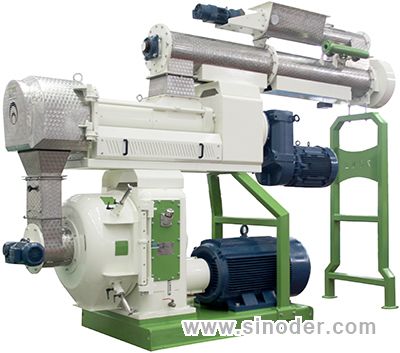

  • 528牛羊料制粒机 feed pellet mill

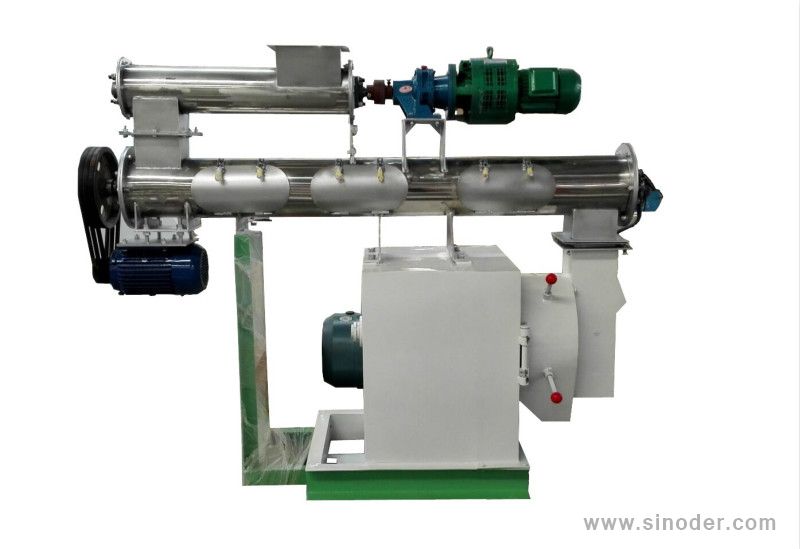

  • feed pellet mill

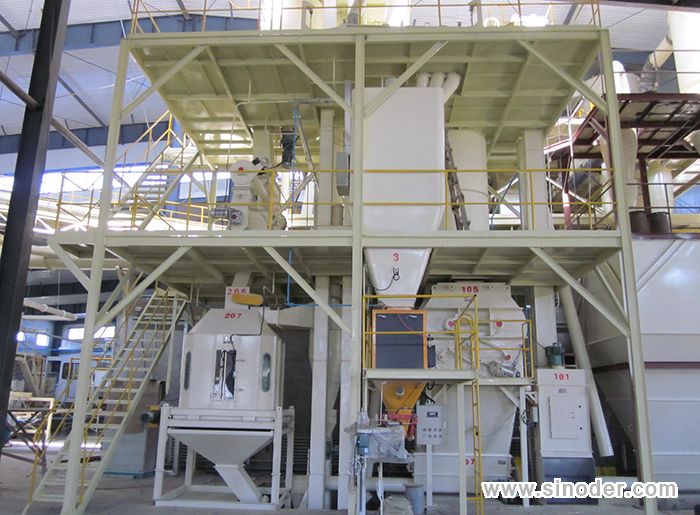

  • chicken feed line plant

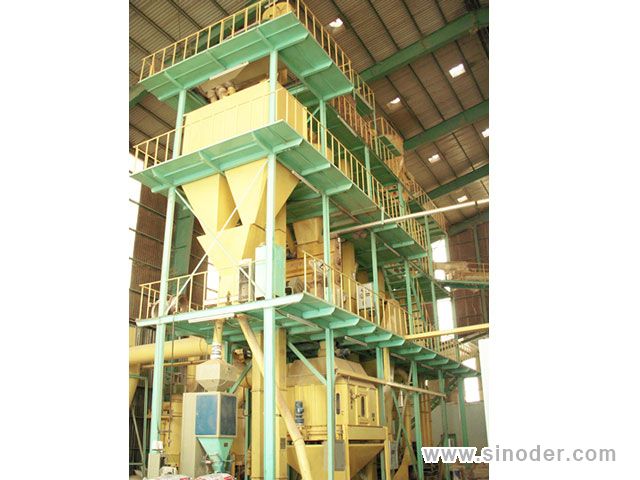

  • Feed production line

  • 528牛羊料制粒机 feed pellet mill
  • feed pellet mill
  • chicken feed line plant
  • Feed production line
Feed Pellet Granulator Mill

We're here to help: Easy ways to get the answers you need.

CHAT NOW
  • Technical Data
  • Features
  • Working principle

Poultry Livestock Feed Pellet Production Line Sheep Cow Feed Making Plant
Livestock Feed Pellet Line.
1) It is suitable for pig, swine, chickens, ducks, geese, quail and other animal feed processing and production.
2) The capacity range is 1-30 ton per hour. we will design based on your exact condition and demand. Possessing decades years of experience in poultry feed production line design and construction, we are capable of offer a tailor-made services and total solution.

Feed Pelleting Mill
Pelleting is a main step of any pelleting plant. It is a process of converting any powder to solid shape called pallet. In this process the powder material is extruded through a well designed die with the help of rollers to convert it in to pallets. The quality & production of pallet mill depends on so many parameters.
1.Feed formula 2. Die configuration 3. Quality of Granding 4. Quality of conditioning. No doubt every material can be converted into pellets.

Animal Feed Pelleting Machine Parameters:
No Item Pellet Mill Specification
    SZLH32 SZLH35 SZLH40 SZLH42 SZLH508 SZLH558 SZLH678 SZLH768
1 Capacity 2-5T/H 2-8T/H 2-10T/H 3-12T/H 4-20T/H 6-22T/H 10-30T/H 12-35T/H
2 Main power 37kw 55kw 75/90kw 110kw 132/160kw 160/180/200kw 220/250kw 280/315kw
3 Power of feeder 0.55kw 1.5kw 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw 2.2kw
4 Power of conditioner 2.2kw 3kw 3kw 5.5kw 7.5kw 7.5kw 11kw 15kw
5 Inner diameter of die 320mm 350mm 400mm 420mm 508mm 558mm 678mm 768mm
6 Die speed 305RPM 336RPM 307RPM 287RPM 287RPM 287RPM 287RPM 287RPM
7 Feeder speed 12-120RPM
8 Conditioner speed 350RPM
9 Pellets size Diameter 2,3,4,4.5,5,6,8,10mm
10 Rollers number 2 pcs
11 Roller OD 140mm 165mm 190mm 206mm 222mm 240mm 256mm 280mm
12 Pellets rate of briquette ≥95%
13 Percentage of powdered pellets ≤12%
14 Stability of pellets in the water ≥20 MIN
15 Noise ≤86dB（A） ≤90dB（A）
16 Die working temperature ≤85℃
17 Steam working pressure 0.1-0.4Mpa
18 Steam consumption ≥0.3t/h ≥0.3t/h ≥0.4t/h ≥0.5t/h ≥1t/h ≥1t/h ≥1.5t/h ≥1.5t/h
19 Steam temperature 130-150℃


SZLH250 Pellet Mill

Parameters:
Items Technical Parameter (SZLH250)
Production Capacity 1.5-2.5t/h
Power of Main Motor 380V 50Hz 3 Phase 22 KW (Can be customized)
Power of Feeding Screw Motor 0.75 KW
Power of Conditioner 1.5 KW
Inner Diameter of ring die Φ250mm
Efficient width of ring die 80mm
Speed of ring die 300rpm
Speed of feeding screw 12-120rpm
Speed of Conditioner 350rpm
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of Roller Φ110mm
Pellet Ratio of Briquetting ≥ 95%
Percentage of powdered Pellet ≤12%
Stability of pellet in the water ≥20min
Noise ≤85dB(A)
Working temperature of ring die ≤85℃
Working pressure of steam 0.3Mpa
Steam consumption 50kg/H
Temperature of steam 130-150℃
Packing Size (length×width×height) 2450*1550*2200mm
Machine Size 2250*1430*2040mm
Net/Gross Weight 1150KG/1445kg




FAQ

If you're interested in our feed pellet processing machines, please kindly tell us the following requirement:

1. What's the feed pellet production capacity do you want?

R:we can supply feed pellet mill or production line with output from 0.1-30t/h.

2. What's your feed raw material and size and feed formula content?

R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.

3. What's the final feed pellet diameter or size do you want or for what animal?

R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep？fish?horse? cow? or pig?or what purpose?
Pellet Mill Features：
1,With efficient first-stage gear transmission, the energy can be transferred to the maximum extent;
2,The all-stainless steel feeder with a variable pitch anti-arching mechanism is controlled by an imported variable frequency speed regulator;
3,An axial steam inflow mode is applied to the enlarged stainless steel conditioner, which greatly shortens the conditioning and curing time and improves the effect;
4,Due to the adoption of carburization quenching as well as gear grinding for the hard tooth surface, high-precision transmission gears and gear shafts feature stable transmission, low noise and long service life;
5,The materials of the gear box and high precision of the transmission hole come from the casting technologies of professional casting factories as well as the guarantee of CNC machining equipment;
6,It is equipped with a main transmission system bearing as well as imported high-quality oil seals; in addition, a lubricating oil return system is particularly set, ensuring reliable bearing lubrication;
7,The ring die is connected with the transmission wheel through a three-piece quick-release precisely cast hoop, so the ring die can be conveniently and quickly dismounted;
8,Manufactured totally by stainless steel, the door cover and the chute feature strong corrosion resistance and long service life;
9,Due to the adoption of a novel snakelike spring coupling, the motor and the gear shaft feature convenient assembly and disassembly, reliable transmission and high efficiency.

Reference Solution for Animal Feed Processing Plant

Main Machine & Capacity

1-2 t/h

3-5 t/h

6-8 t/h

10 t/h

20 t/h

Feed hammer mill

SFSP56 × 30

SFSP56 × 40

SFSP56 × 60

SFSP66 × 80

SFSP112 × 4

Feed pellet machine

SZLH250

SZLH320

SZLH350

SZLH420

SZLH508

Mixer

SLHY1.0

SLHY1.0

SLHY2.0

SLHY2.0

SLHSJ3.0

Cooler

SKLN11 ×11

SKLN15×15

SKLN15 ×15

SKLN19 ×19

SKLN22 ×22

Crumbler

SSLG22 ×40

SSLG15 ×100

SSLG15 ×100

SSLG24 ×110

SSLG24 ×16

Rotary screener

SFJH80×2d

SFJH100×2d

SFJH100×2d

SFJH130×2d

SFJH150×2d

Cooling fan

4-72No4A

4-72No5A

4-72No5A

4-72No8D

4-72No8C

Cooling discharger

XL60

XL80

XL90

XL120

XL150

Boiler

LSG-0.3-0.4

LSG-0.3-0.4

LSG-0.5-0.4

LSG-1.0-0.7

LSG-1.0-0.7

Lifting equipment

TDTG26×18

TDTG26×18

TDTG36×23

TDTG36×28

TDTG50×23

Outline dimension
L× W × H

9×3.5×11m

9×3.5×12m

12×4.2×13.5m

13.5×4.8×14m

15×5.5×17m



1-20T/H Animal Feed Pellet Line Machine chicken feed machine,fish feed machine, sheep feed machine:
No. Name Type Qty. Power
(kw)		 Performance&characteristics
        unit total
Materials receiving and handling system
101 raw material hopper & screen   　 2 　 　
102 Induced fan 4-72No 1 3.00 3.00 After balancing check; Smooth, low noise operation.
103 Pulse Bag Filter TBLMb12 1
104 Air lock GFY210 1 0.75 0.75
105 Bucket elevator TDTG3/23 1 2.20 2.20
106 Trommel screen SCQY6 1 0.75 0.75 High quality
Crushing  System
202 Storage bin for crushing 2M3 1 　 　 Made by 3mm steel plate.
203 Induced fan 4-72 1 3.00 3.00 After balancing check;Smooth, low noise operation.
204 Pulse Bag Filter TBLMb9 1
205 Settle down chamber   1     Made by 3mm steel plate.
206 Locked screw conveyor TLSB20 1 1.50 1.50
207 Impeller feeder frequency TWLY25*40 1 1.10 1.10
208 Water type crusher SWSP63*6 1 45.00 45.00
209 Bucket elevator TDTG36/2 1 2.20 2.20
Mixing System
301 Silo for mixing 2M3 1     Made by 3mm steel plate
302 Pneumatic gate TZMQ25×25 1 　 　 Nice sealing
303 Double shaft mixer SLHSJ1.0 1 11.00 11.00
304 Silo 1M3 1     　Made by 3mm steel plate
305 Bucket elevator   TDTG36/2 1 2.20 2.20
306 Pneumatic tee
307 Magnet drum TXCT20       Iron removing≥99.5%
308 Automatic feeding device
Pelleting System
401 Storage bin for pelleting 2M3 1     Made by 3mm steel plate.
402 Pellet mill SZLH350 1 55+
2.2+0.75		 57.95
403 Airlock GFY21   0.75 0.75
404 Counterflow cooler SKLN15×15 1 1.50 1.50
405 Pellet crusher SSLG15×100 1 5.50 5.50 Low energy consumption, more uniform particle size, grade back less material, low noise, high efficiency.
406 Draught fan 4-72No5A 1 11.00 11.00
407 Material discharge XL100 1
408 Airlock GFY210   0.75 0.75
409 Bucket elevator TDTG36/2 1 3 3 Same with Item 105.
410 Rotary sifter SFJH100×2 1 1.50 1.50 Import elastic support plate,Direct drive belt and low noise;Internal flow line design, no material deposition, no cross-contamination.
Packaging System
501 Level indicator   2
502 Product silo 4m³ 1     Made by 3mm steel plate
503 Buffer hopper   1
504 Automatic packing machine HL-CS-50 1 1.5 1.5
Auxiliary system
601 Oil adding system   1 1.50 1.50 Microcomputer control, automatic quantitative filling, error ≤1%.
602 Add liquids add pipeline  accessories system   1
603 Air compressor and pipe system     7.50 7.50
604 Steam boiler and pipes system   1
Control System
701 Control cabinet
702 Cable, wire, wire trunking, and other supporting materials
Installation materials
801 Suction, dust, cooling air network system
802 Steel, platform, stair handrail
803 Seals, piping materials and other non-standard parts
804 Electrode, oxygen, gas
805 Pneumatic components
806 Paints
