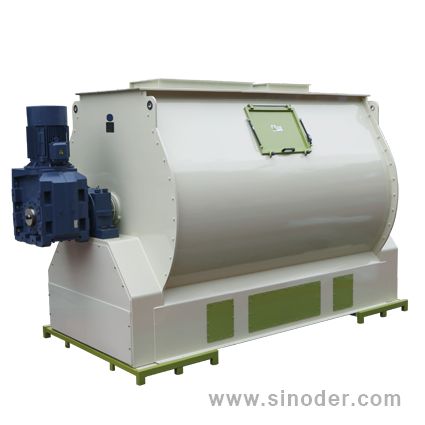

Twin-Shaft Paddle Mixer
Twin-Shaft Paddle Mixer widely used in feed mills, for mixing powder materials, guarantee uniformity and quality of complete feed.
Cross section of cylinder round, mixing without dead corner,mixing time: 30-90s,barrel wall plot-free; Enlargement in length opened discharge door at the bottom to reduce residues; Mixed: CV ≤ 5, Opening angle greater than 90 degrees, the door self-locking, discharge door does not open at cylinder pressure loss.
Advantages of double shaft paddle mixer machine
1. Hardened gear reducer
2. SKF bearing and Bearing seat
3. Two injection oil systems
4. Paddle: Laser cutting machine processing, 3mm distance with mixed wall
5. Bottom cylinder type discharge
Twin-Shaft Paddle Mixer Parameters:
| Model |
Effective volume (m³) |
Mixing amount per batch(kg) |
Mixing time per batch(s) |
Mixing uniformity(CV≤%) |
Power (kw) |
| SSHJ0.5 |
0.5 |
250 |
45-120秒（The time can be appropriately prolonged according to different materials.
） |
5 |
7.5 |
| SSHJ1 |
1 |
500 |
5 |
11 |
| SSHJ2 |
2 |
1000 |
5 |
18.5 |
| SSHJ3 |
3 |
1500 |
5 |
30 |
| SSHJ4 |
4 |
2000 |
5 |
37 |
| SSHJ6 |
6 |
3000 |
5 |
45 |
If you're interested in our feed pellet machines, please kindly tell us the following requirement:
1. What's the feed pellet production capacity do you want?
R:we can supply feed pellet mill or production line with output from 0.1-30t/h.
2. What's your feed raw material and size and feed formula content?
R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.
3. What's the final feed pellet diameter or size do you want or for what animal?
R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep？fish?horse? cow? or pig?or what purpose?
4. What's your country industrial electricity voltage?
R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.
