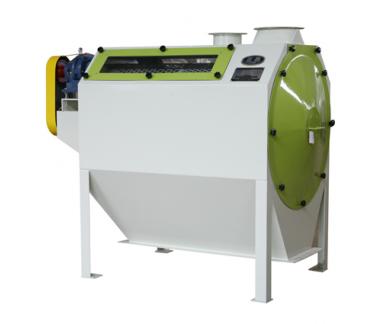

Trommel Screen Pre-cleaner
Pre-cleaner Machineis suitable for grain storage and process, animal feed producing. It could highly protect the subsequent processing equipments, and increase the productivity. The access door makes the daily maintenance and repair much easier and simple. There are monitor windows in the side and top of the machine, the operator could easily observe the running condition. We equip the most suitable size of the sieve, to fit different grain raw material, to get the best effect. High capacity, low consumption, small floor space.
Features：
1, well cleaning efficiency, high efficiency in removing impurity: in addition to the big miscellaneous efficiency of 99% or higher, in the big miscellaneous do not contain full particles or net;
2, using horizontal arm cylindrical screen. Sieve tube feeding and discharging screen principle, choose different combination of mesh, respectively, can get ideal screen manage efficiency;
3, with reverse feeding mode, sieve tube section is equipped with spiral of discharge, and increase the actual screen length, achieve full screen effect, and effectively prevent the impurities with a net;
4, the internal, external structure of brush cleaning sieve. Fiber impurities and rice is orange in screening group shaped with the guide screw, and reliably for automatic cleaning;
5, low power, high output, stable running and reliable, in sieve convenient maintenance, compact structure, accounting for the space is little;
6, is widely used in feed, oil, flour, rice milling, grain and other food and chemical industries such as raw materials in the early qing finishing process.
Main Technical and Performance Parameters：
| Model |
SCY50 |
SCY63 |
SCY80 |
SCY100 |
SCY125 |
SCY150 |
| Output（t/h） |
10-20 |
20-40 |
40-60 |
60-80 |
80-100 |
120-125 |
| Power（kw） |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
2.2 |
What we offer:
The planning and design for whole factory or complete set production line
1. Poultry & livestock feed mill project:
· Feeds for animals in various growing period;
· Different capacity, 0.5~40TPH per line;
· Meeting the standards of different countries and regions.
2. Aqua feed mill projects:
· Sinking fish feed, shrimp feed etc.
· Different capacity, 0.3-15 TPH per line;
· Meeting the standards of different countries and regions.
3. Premix plant project:
· Specialized equipment and process flow;
· Effectively controlled cross contamination, residue and dust emission;
· Different capacity, 0.3-15 TPH per line.
4. Pet-food plant project:
· Specialized extruder, dryer and coater adopted;
· Different capacity, 0.3-10 TPH per line.
